SMC001: The Single-Column Powerhouse
“Outperform 20 Columns in a Single Machine.”
Advantages of SMC001: The Single-Column Oil Polishing Powerhouse
High Capacity. Less Space. Smarter Investment.
The SMC001 Single-Column Oil Polishing Machine represents a new approach to industrial oil purification. Designed to deliver the processing capacity of multiple conventional columns through a single large column, it helps businesses simplify plant layouts, optimize operating costs, and scale their oil-polishing operations efficiently.
1. High Production Capacity
One SMC001 unit is designed to deliver production capacity comparable to approximately 20 conventional columns, depending on the oil quality and operating conditions. This enables high-volume processing with a more compact and simplified system.
2. Reduced Space Requirements
Replace multiple smaller columns with one large-capacity column. The streamlined configuration can significantly reduce equipment footprint and free up valuable factory space for other operations.
3. Cost-Effective Investment
A consolidated column design can reduce the need for multiple vessels, supporting structures, interconnecting pipelines, valves, and associated fittings. This can help optimize the overall capital investment compared with a conventional multi-column arrangement of similar capacity.
4. Simplified Plant Layout
Fewer columns and interconnections mean a cleaner, more organized installation. The simplified configuration can make plant planning, equipment arrangement, and future capacity expansion easier.
5. Lower Maintenance Complexity
With fewer individual columns and associated components to inspect, maintain, and service, routine maintenance planning can become simpler. The actual maintenance savings will depend on the final plant configuration and operating conditions.
6. Versatile Oil Processing
The SMC001 can be configured for polishing a range of industrial oils, including:
- Re-Refined Base Oil (RRBO)
- Used Distilled Oil
- Pyrolysis Oil
- Paraffin Oil
- MHO and MTO
- Transformer Oil
Applications
SMC001 Oil Polishing Unit combined with SMC Activated Media is highly effective for removing colour, Odors, unsaturated hydrocarbons, sulphur, and volatile organic compounds (VOCs) from Recycle Base Oil, Paraffin Oil, MHO, MTO, Plastic Oil, Transformer Oil, etc. The result of over 20 years of continuous R&D, SMC 001 represents a breakthrough in oil polishing—making us the sole manufacturer of this single-column technology in India. Our exclusively manufactured SMC Activated Media (Activated Bauxite) can be reused multiple times, offering excellent return on investment for both small and large operations.
- Input Oil: RRBO (IS 18722 Part 1_ 2024), Used Distilled Oil, Pyrolysis Oil, etc.
- Expected Output Oil: 2 (ASTM 1500) Non-Smell/Odour Free.
MOC: Mild Steel IS2062 E250
Media Holding Capacity: 2,200 Kg per unit.
RRBO (IS 18722 Part 1)/USED DISTILLED OIL/Transformer Oil/Pyrolysis Oil/MHO
|
No. Of Machine Units |
Expected Production per Cycle for following colour of Input Oil (Ltr) | |||
|
3.0-3.5 |
3.5-4.0 | 4.0-5.0 |
5.0-6.0 |
|
|
1 |
4,000-4,500 | 3,300-3,500 | 2,000-2,100 |
1,000-1,100 |
|
1+1 |
8,000-9,000 | 6,500-7,000 | 4,000-4,200 |
2,000-2,200 |
|
2+2 |
16,000-18,000 | 13,200-14,000 | 8,000-8,400 |
4,000-4,200 |
| 3+3 | 24,000-27,000 | 19,800-21,000 | 12,000-12,600 |
6,000-6,200 |
The Output oil will be Odour free/ Non-Smell with colour Max. 2 for above mentioned production.

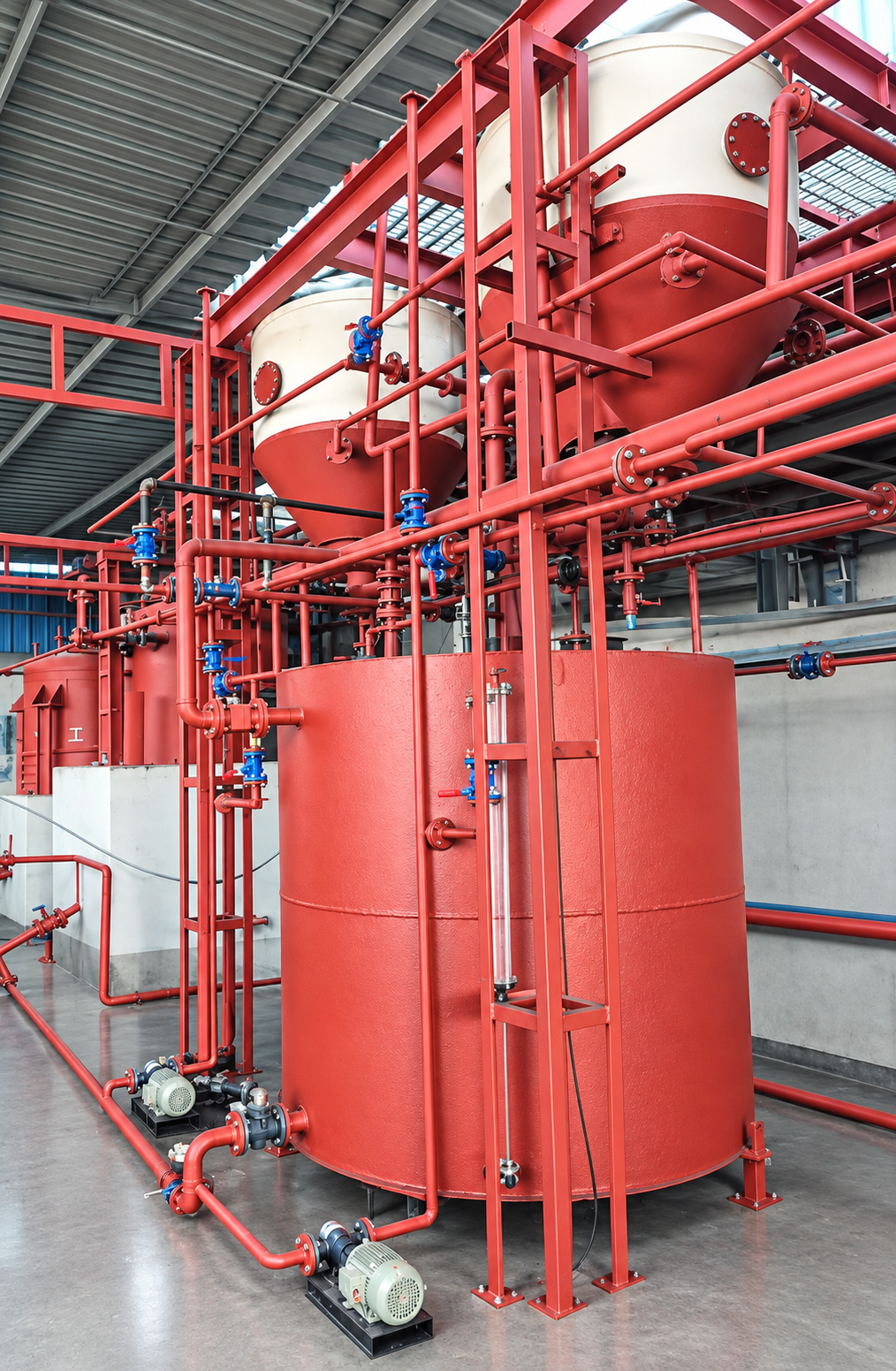

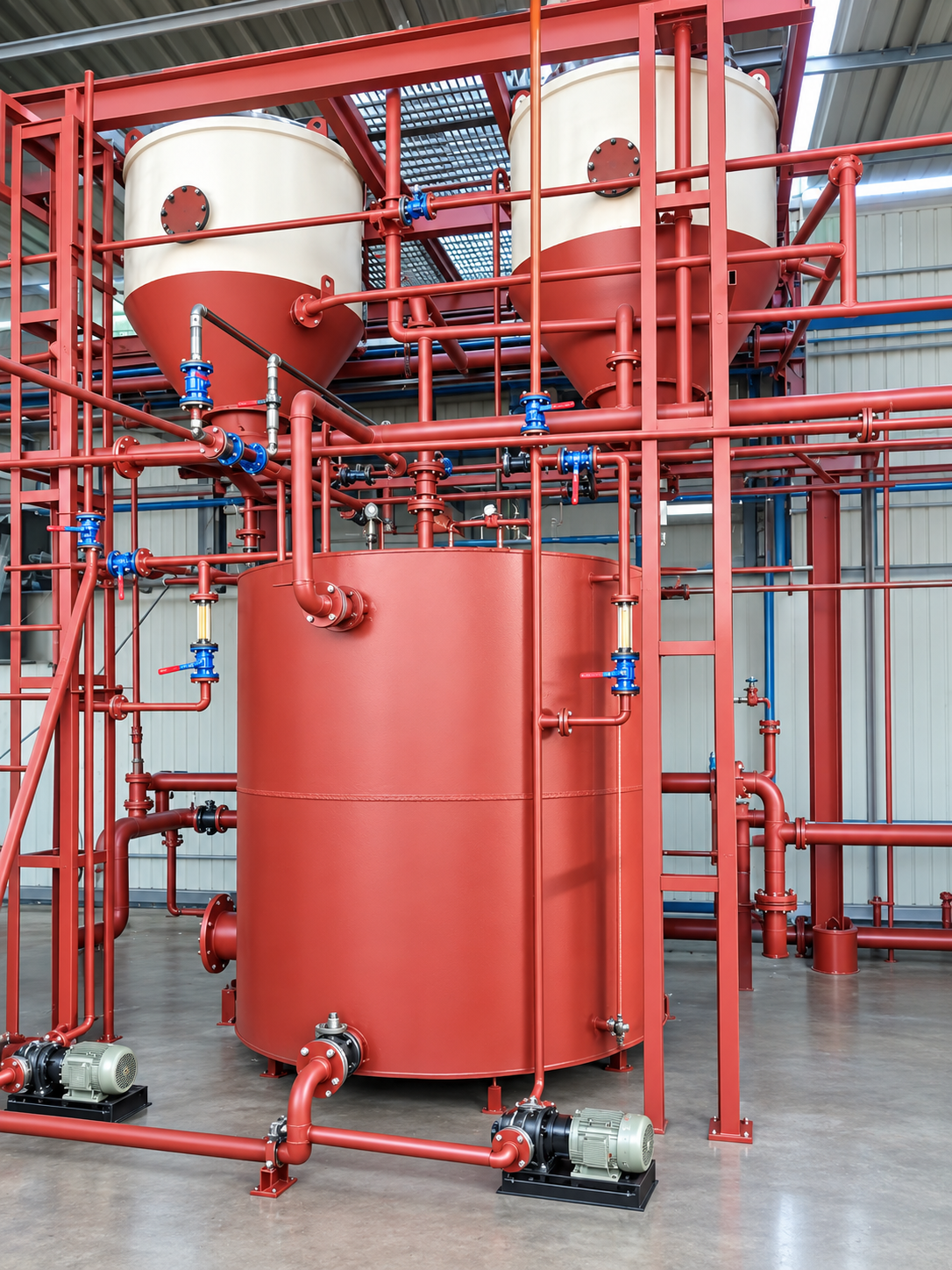

The below image shows the 1+1 variant of the machine:
Contact us through email (enquiry@shardaminerals.com) or Mob: +91-9827022358 to get a video of the lab demonstration of our machine.
